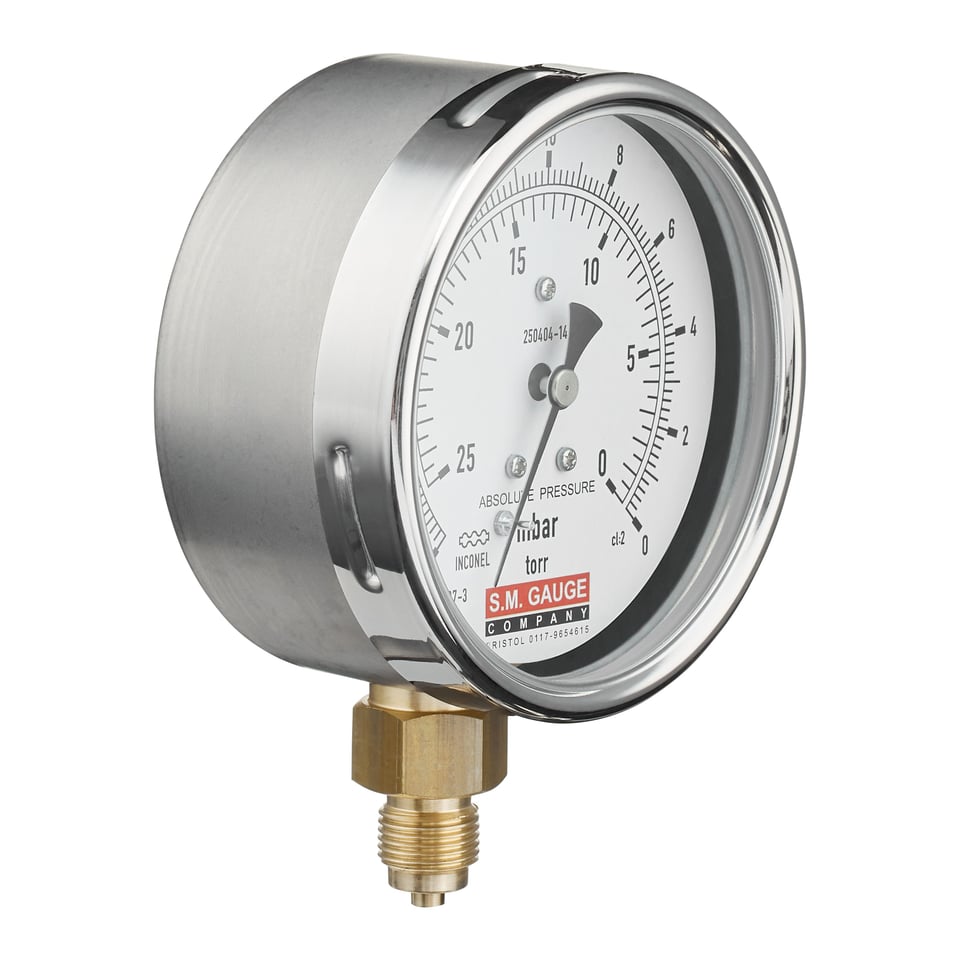

Stainless Steel Case Absolute Gauge

Absolute pressure gauges are used when the pressure measurement needs to be carried out independently of fluctuations in the atmospheric pressure.

Get in touch +44 (0) 117 965 4615

Specification

  • Diameter: 100mm
  • Ranges: from 0 to 1000 mbar (750 Torr) Absolute
  • Accuracy: ±2.0% FSD
  • Orientation: Bottom or rear
  • Connection size: 3/8″ BSP
  • Mounting options: Direct
  • Case filling: Dry
  • Case material: 304 stainless steel
  • Thread material: Brass
  • Window: Instrument Glass
  • Process temperature: 60°C Max
  • Weather protection: IP 66

Options

  • Bespoke threads, ¼" flare, KN flange adaptors, BSP threads
  • Custom dials
  • Customer logo
  • Alternative mounting options: Panel mount with clamp, surface mounting flange

Calibration Notes

  • Traceable to National Standards
  • UKAS
