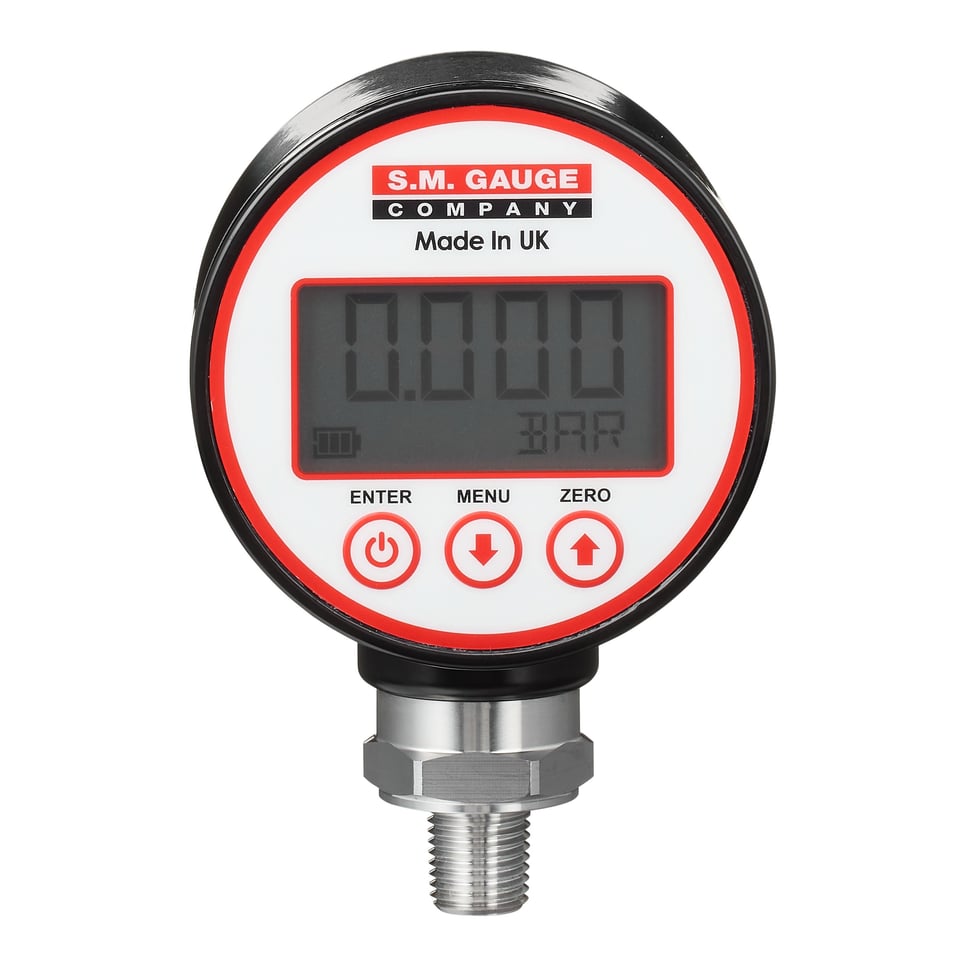

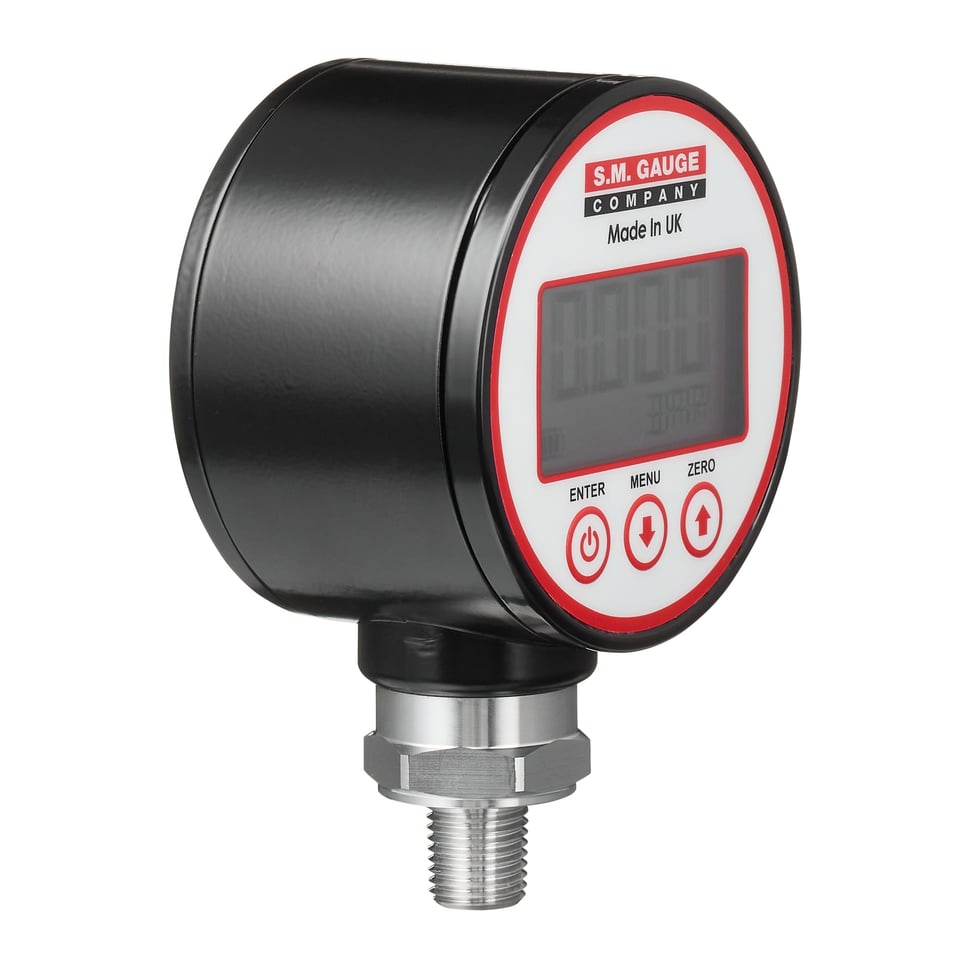

The DG75 series offers ±0.2% of span accuracy. The 316 stainless steel sensor and socket make this product suitable for use with a wide variety of pressure media in demanding industrial applications.
The aluminium case is the perfect combination, making the gauge lightweight, and robust. IP67 ingress protection rating means the DG75 is suitable for hose directed water spray such as equipment wash down.
The DG75 comes standard with many features such as: min and max memory, multiple engineering units, and pressure ranges from -1 to 1000 bar.
It is also available in an ATEX version (DG75X)
Specification
- Large LCD display
- Push-button menu navigation
- Multiple engineering units
- Min. / Max. function feature records low and high pressure events
- Wide variety of pressure connection thread options
- Powered by 2x 1.5V AA batteries (DG75) or 1x Saft LS14500 3.6V Lithium AA battery (DG75X) - 1 year continuous operation when powered up.
- Accuracy: ±0.2% FS
- Pressure Ranges: Vacuum to 1000 bar
- Absolute ranges available up to 40 bar
- Various thread sizes available
- Full 4 digit display
- Case size: 70mm, aluminium
- IP67 weatherproof enclosure
- Wetted materials: 316L stainless steel
Options
- ATEX certified (intrinsically safe): II 1G Ex ia IIC T4 Ga Ta (-20°C to 60°C)
- Rubber shroud (coming soon)
- Small hard carry case with foam cutout (coming soon)
Calibration Notes
- Traceable to National Standards
- UKAS
If you have any questions, please contact us on +44 (0) 117 965 4615 or visit our enquiry page and submit the form.
We can also customise our products to your specific needs.
