Instrument Valves & Block & Bleed Manifolds

We supply, customise, repair and calibrate all ranges of Instrument Valves & Block & Bleed Manifolds

UK Based
Custom Products
Fast Delivery

Instrument Valves & Block & Bleed Manifolds

Read product description

2 Valve Manifolds

2 valve, block and bleed manifolds are designed for mounting to the process with the instrument. pressure transmitters and pressure...

3 Valve Manifolds

3 valve, block & bleed manifolds are designed for mounting to pressure gauges, transmitters, switches and many other types of...

5 Valve Manifolds

5 valve manifolds are designed for direct mounting to differential pressure transmitters, with separate isolation and vent for LP and...

Instrument MonoFlanges

Block and bleed MonoFlanges are a primary isolation valve to provide a compact instrument block and bleed valve. These are...

Needle Valve

Needle valves separate the process from measuring instruments such as pressure gauges, switches or transmitters. By closing this valve the...

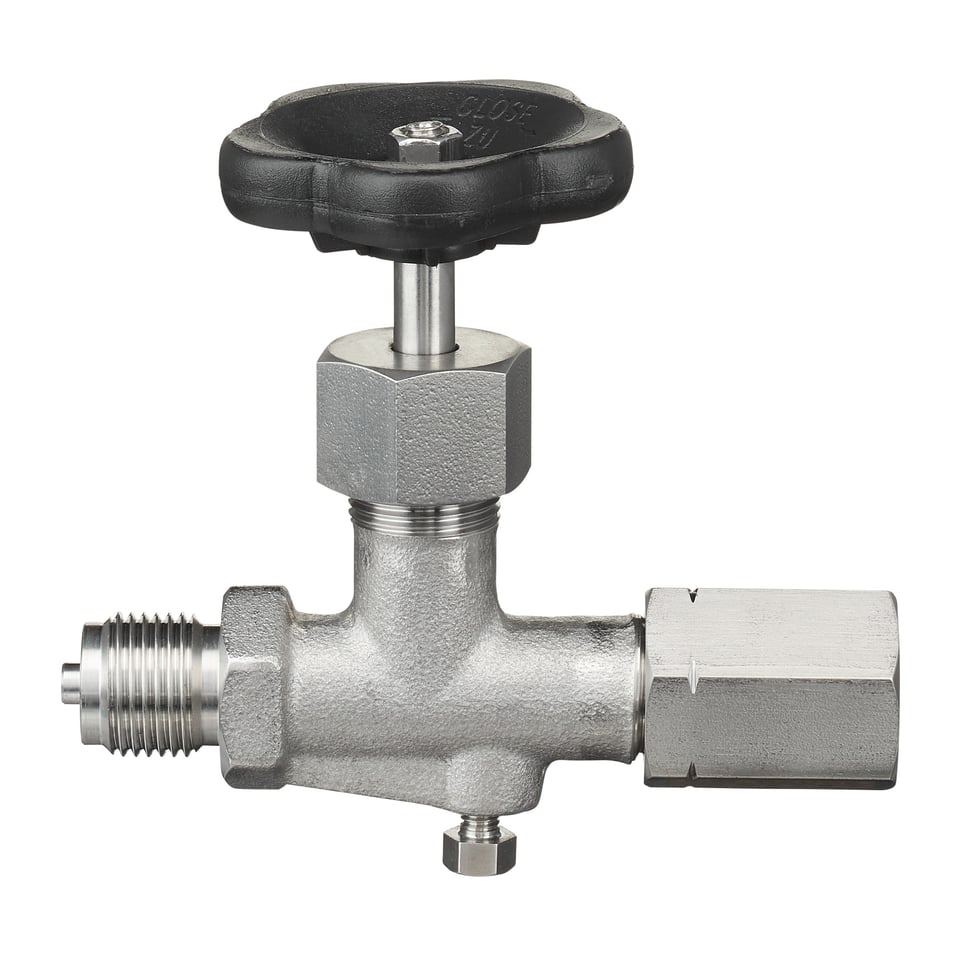

Stainless Steel Gauge Isolation Valve

Isolation Valves provide a simple way to shut off the flow to a pressure instrument. Gauge Valves allow the instrument to...

Brass Gauge Isolation Valve

Isolation valves provide a simple way to shut off the flow to a pressure instrument. Gauge Valves allow the instrument...

Carbon Steel Gauge Isolation Valve

Isolation valves provide a simple way to shut off the flow to a pressure instrument. Gauge Valves allow the instrument...

Block & Bleed manifolds are a type of isolation valve. They have multiple handles to isolate different parts of the system. They also have a bleed port so the system can be bled whist maintaining pressure in the gauge, or process. Many configurations and ports allow the pressure to be redirected or vented safely. The bleed port can also be connected into so the process gauge can be checked inline.

Excellent Customer Service

Dedicated pre and post sales staff

From your first enquiry through to future advice and support, we put customer service at the forefront of our business.

Need help? Contact us!

Leading industry standards

NQA ISO9001 Accredited and Achilles Affiliated

  • UKAS logo
  • Achilles logo
  • NQA UKAS logo
  • BEMA logo
  • QAS International ISO 14001:2025 logo

About S.M. Gauge Co Ltd Vacuum Gauges

We supply, repair and calibrate standard Vacuum Gauges and Absolute Pressure Gauges. All of our gauges can be custom made to suit your application, our dials can be scaled to suit any measuring units you require using our state of the art dialling system. The connections can also be machined to suit your exact specification.

There are two main types of vacuum gauges available: Vacuum Gauges are available in a variety of sizes, from 40mm diameter to 300mm and with a bottom or rear entry connection. They are used primary on applications that run at an operating pressure of between 0 (atmospheric pressure) and -30″Hg (inches mercury) Absolute Gauges are used to measure beyond the pressures of a standard Vacuum Gauge, they are supplied with a 100mm diameter face and are available in a variety of pressures.
