Suitable for gaseous and liquid media that will not obstruct the pressure system or attack copper alloy parts. (excluding Oxygen or Acetylene)
Specification
- Diameter: 40, 50, 63 & 80mm
- Ranges: from -1 bar (-30″Hg) vacuum to 70 bar (1000 psi) pressure
- Accuracy: ±1.6% or ±2.5% FSD

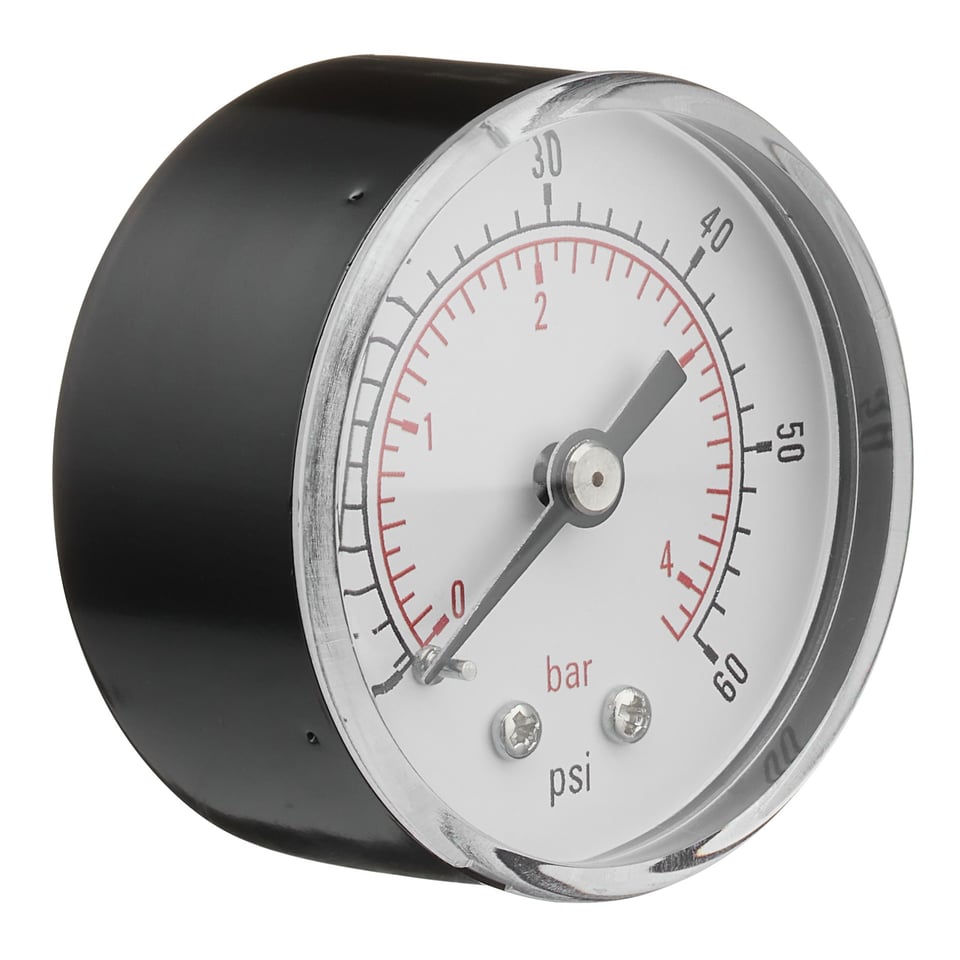

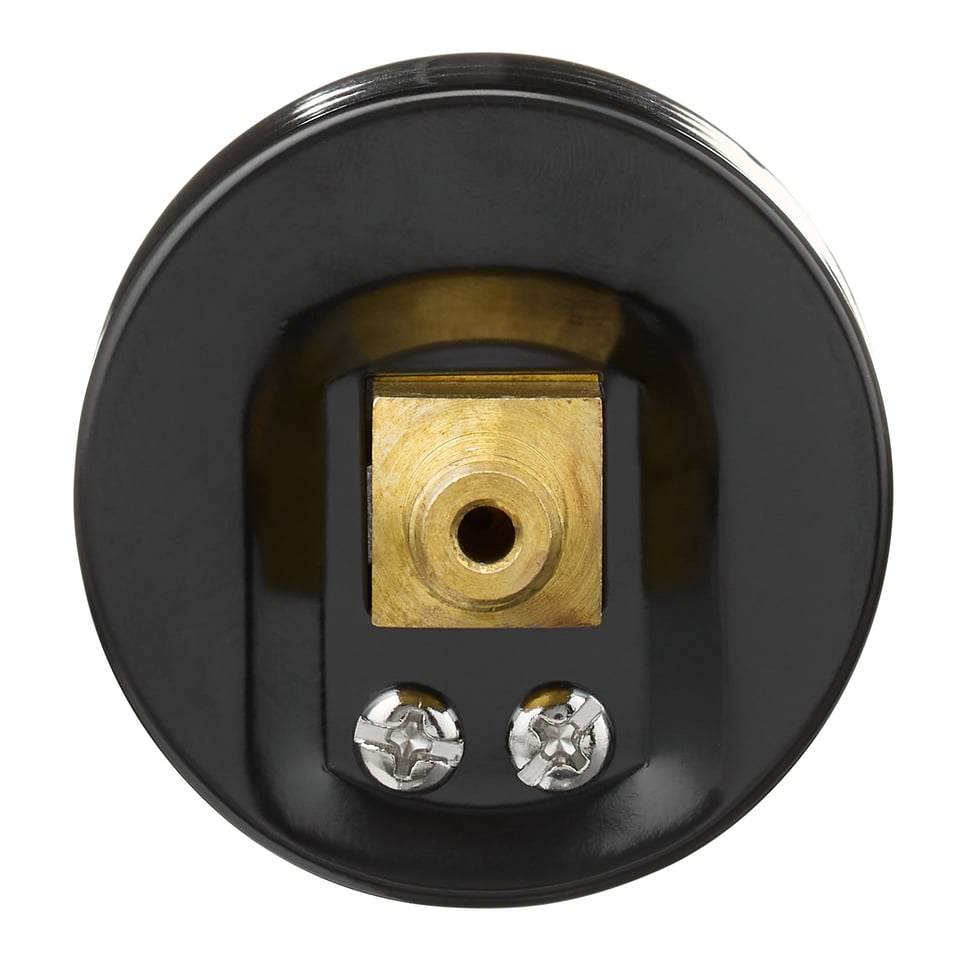

- Orientation: Bottom or rear
- Thread sizes: 1/8″, 1/4″ BSP, BSPT or NPT
- Mounting: Direct
- Case Filling: Dry
- Case Material: Steel case - black finish
- Window: Plastic
- Connection material: Brass
- Process temperature: 60°C Max
- Weather protection: IP 45
Options
- Panel mount, surface mount, 3 hole front flange
- Custom ranges
- Customer logo
- Indicating pointer
- Bespoke threads
- Rubber shroud
- Alternative case materials
Calibration Notes
- Traceable to national standards
- UKAS
