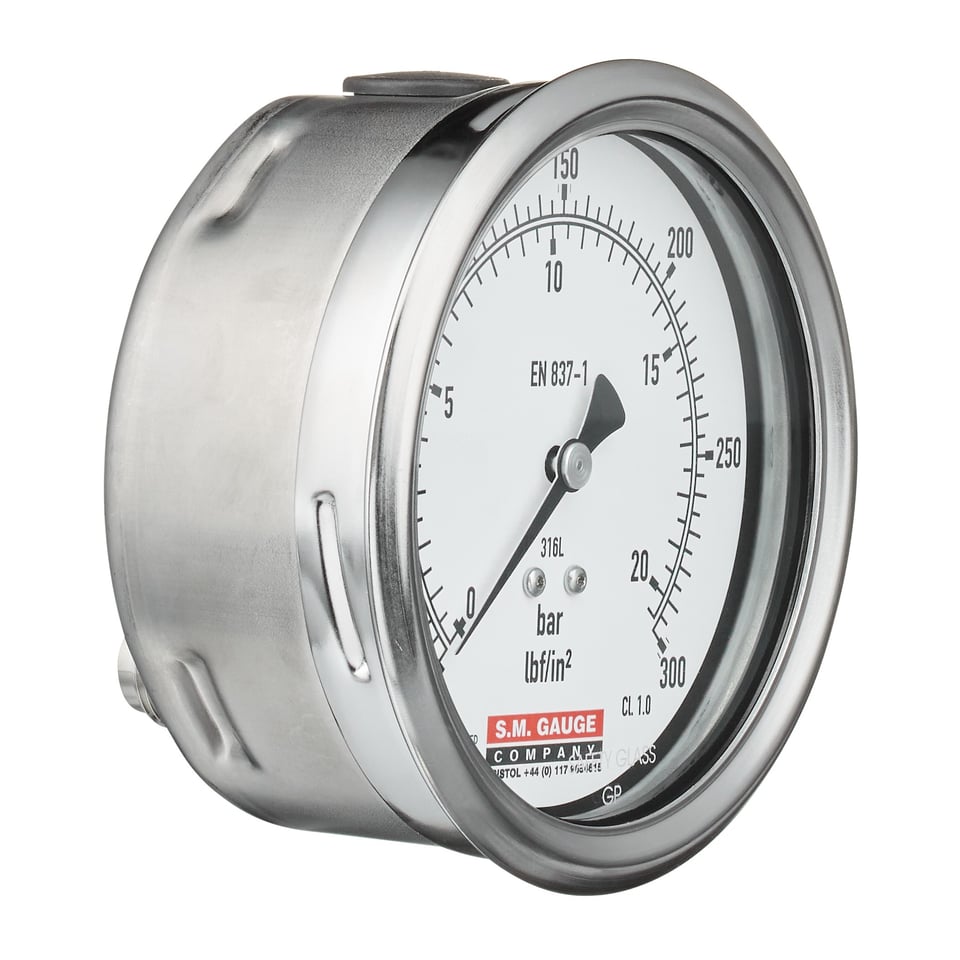

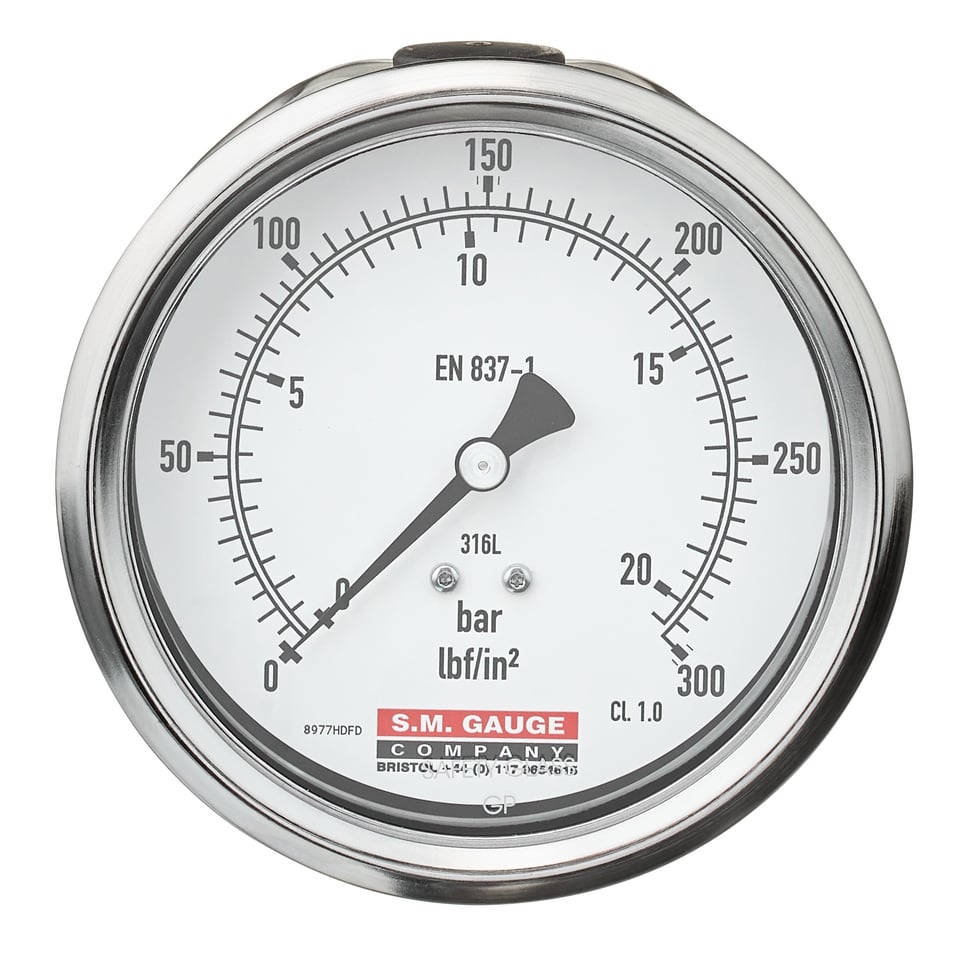

Heavy duty, all stainless steel construction process pressure gauge. Suitable for almost all measuring mediums and operating conditions, also safe for corrosive environments. Suitable for air or inert gases if maximum scale reading does not exceed 25 bar (excluding Oxygen or Acetylene).
Specification
- Diameter: 40, 50, 63, 100, 160, 200 & 250mm
- Ranges: from -1 bar (-30″Hg) vacuum to 1400 bar (20000 psi)
- Accuracy: ±1.0%, ±1.6% & ±2.5% FSD (subject to diameter)

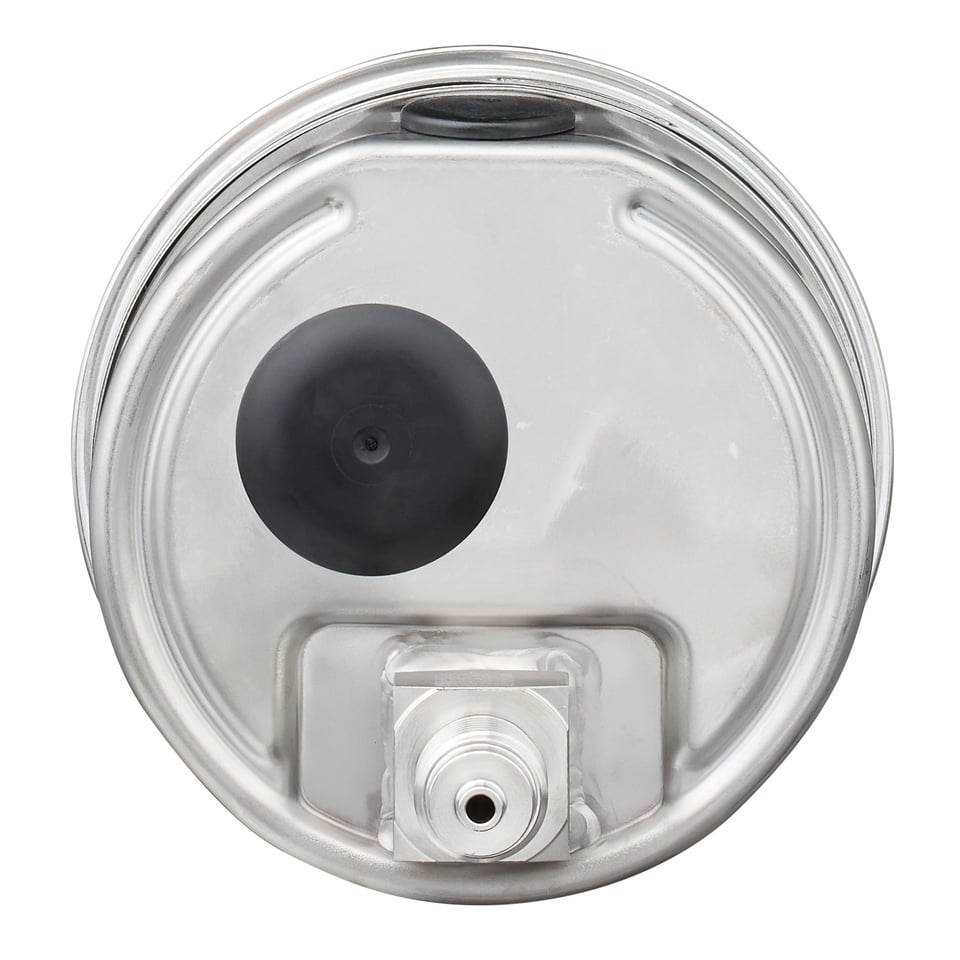

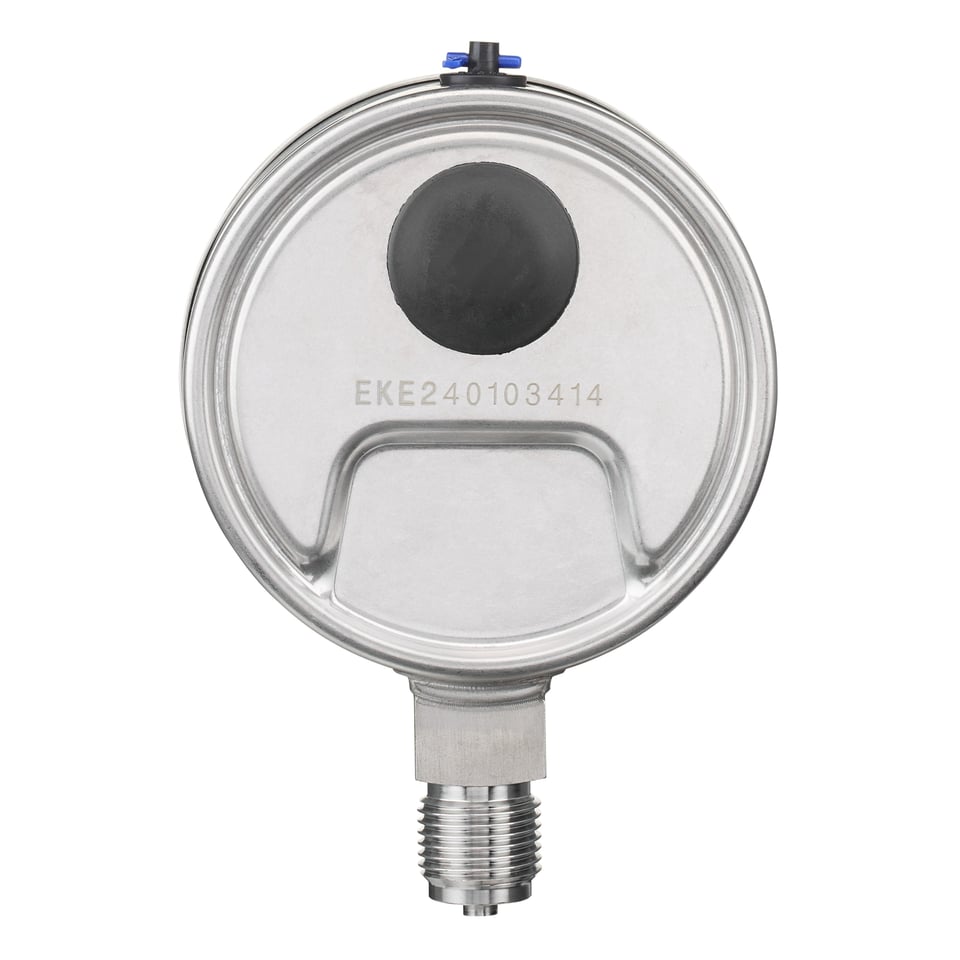

- Orientation: Bottom or lower rear
- Thread sizes: 1/8″, 1/4″, 3/8″ & 1/2″ BSP, (BSPT or NPT 1000 bar max)
- Case filling: Dry or glycerine
- Case Material: 304 stainless steel
- Connection Material: 316L stainless steel
- Window: Safety glass
- Process temperature: 200°C max (100°C with case filling)
- Weather protection: IP 65
Options
- Custom ranges/dials
- Customer logo
- Increased accuracy of ± 0.5% or ± 0.6% FSD
- Alternative mounting options: Panel mount with clamp, surface mount, 3 hole front flange
- Indicating or max drag pointer
- Bespoke threads
- Rubber shroud
- Electrical contact (dry or silicone filled only)
- 316 stainless steel case
- ATEX Ex II 2 GD c TX
- 3.1 material certificates
- Additional certification
Calibration Notes
- Traceable to national standards
- UKAS
