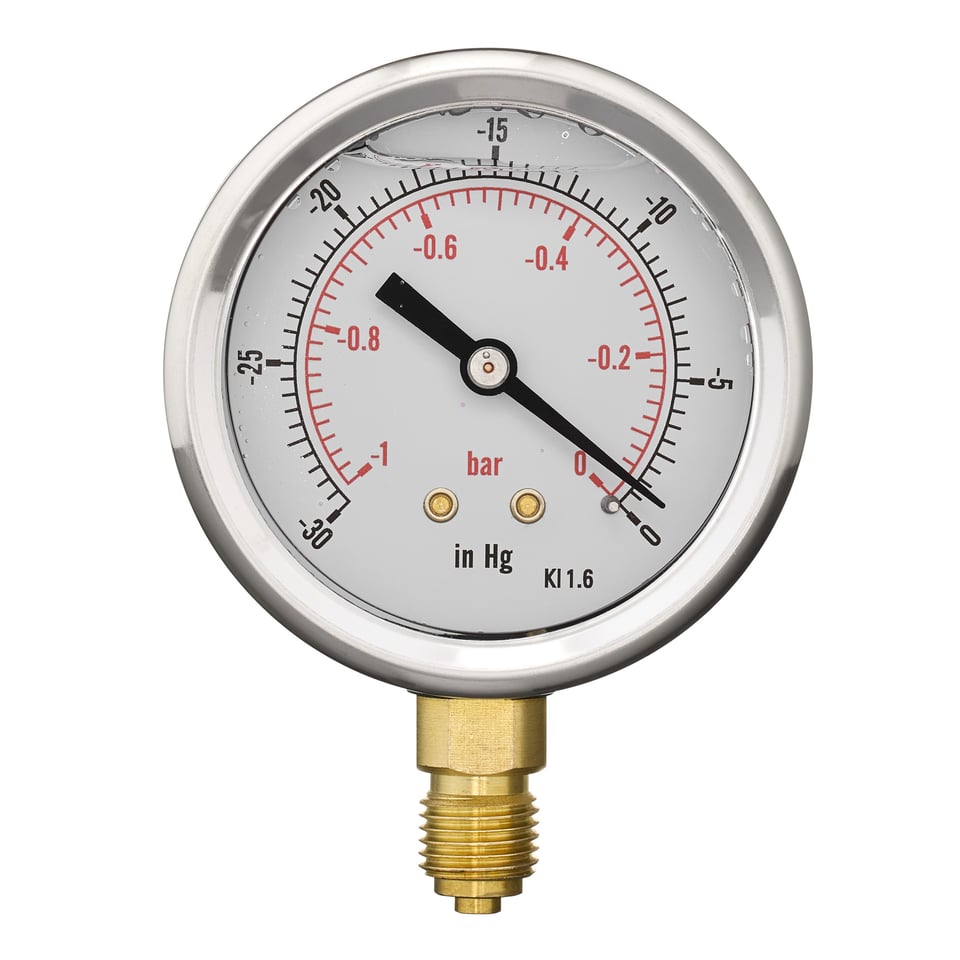

Analogue vacuum gauges are for use on air or inert gases, where negative pressure is present. These can measure from 0 to full vacuum (-1bar).
Specification
- Diameter: 40, 50, 63, 100 & 160mm
- Ranges: from 0 to -1 bar (-30″Hg) vacuum
- Accuracy: ±1.0%, ±1.6% & ±2.5% FSD (subject to diameter)
- Orientation: Bottom or rear
- Connection sizes: 1/8″, 1/4″, 3/8″ & 1/2″ BSP, BSPT or NPT
- Mounting: Direct
- Case filling: Glycerine
- Case material: 304 stainless steel
- Thread material: Brass
- Window: Instrument glass or plastic (subject to diameter)
- Process temperature: 60°C Max
- Weather protection: IP 65
Options
- Custom ranges/dials
- Customer logo
- Alternative mounting options: Panel mount with Clamp, Surface Mount & 3 Hole Front Flange
- Indicating or max drag pointer
- Bespoke threads
- Rubber shroud
- Electrical contact
Calibration Notes
- Traceable to National Standards
- UKAS
If you have any questions, please contact us on +44 (0) 117 965 4615 or visit our enquiry page and submit the form.
We can also customise our products to your specific needs.
