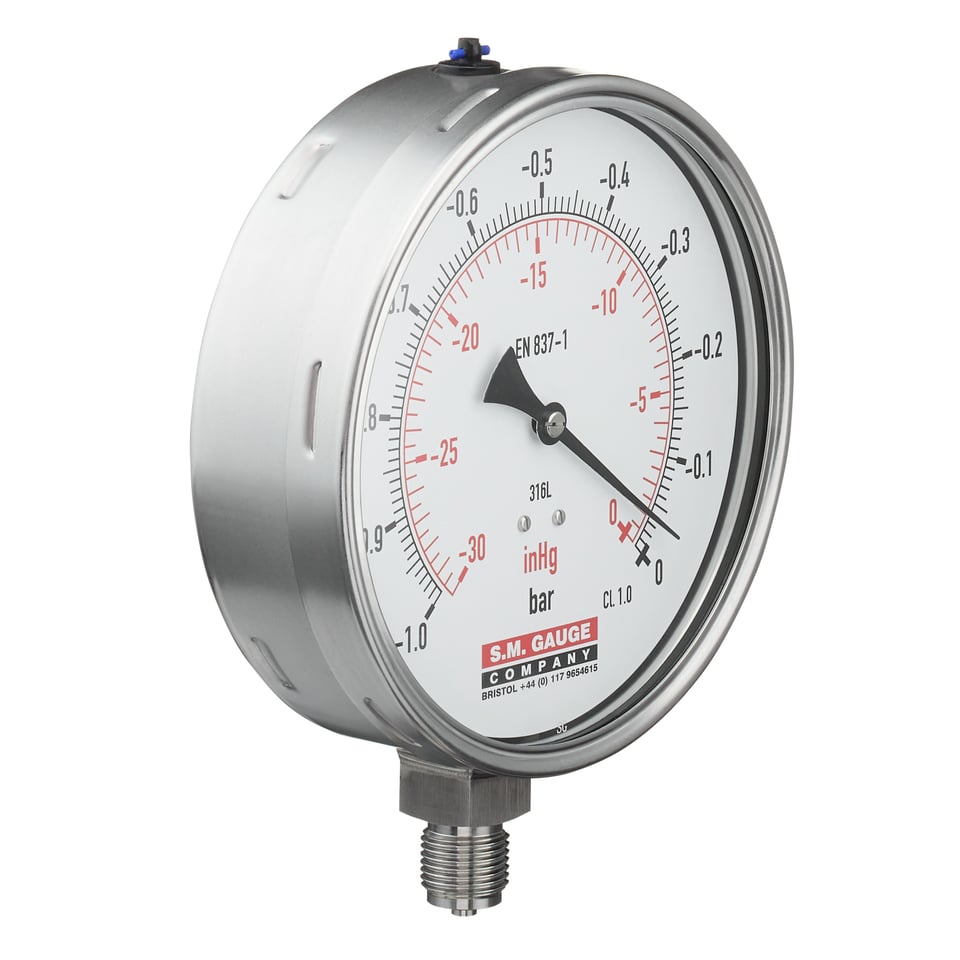

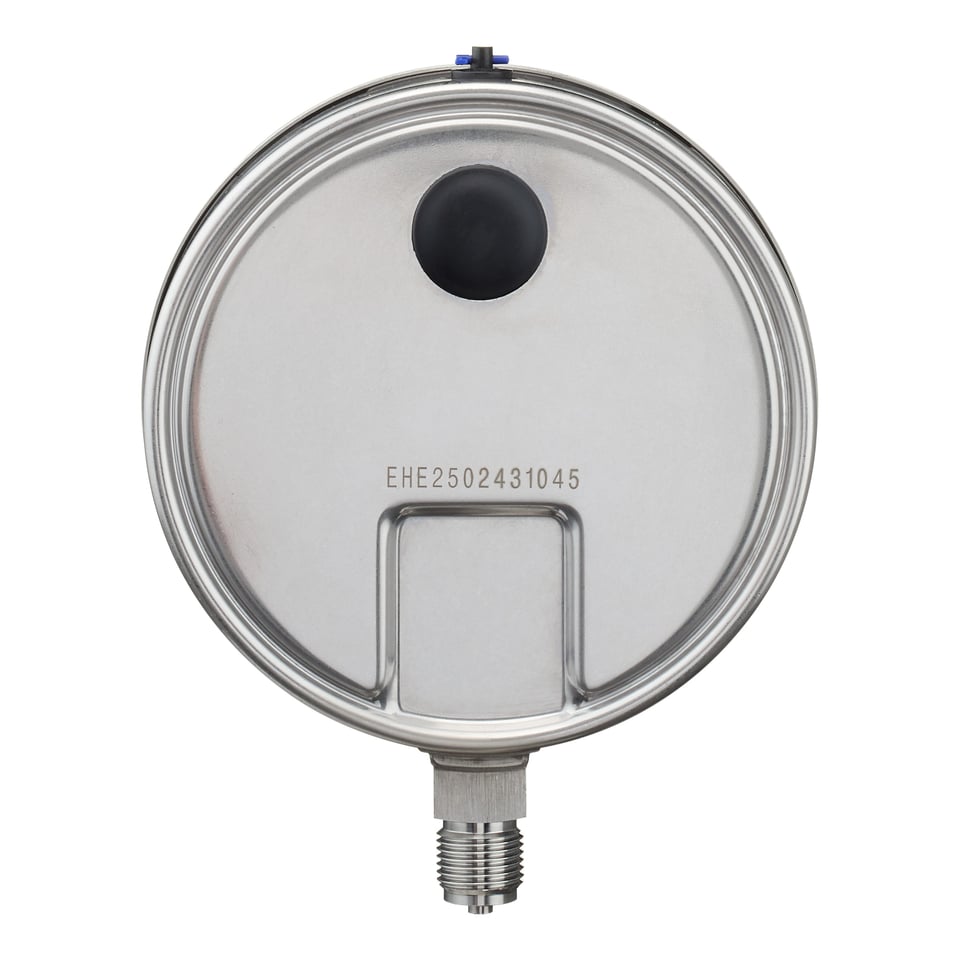

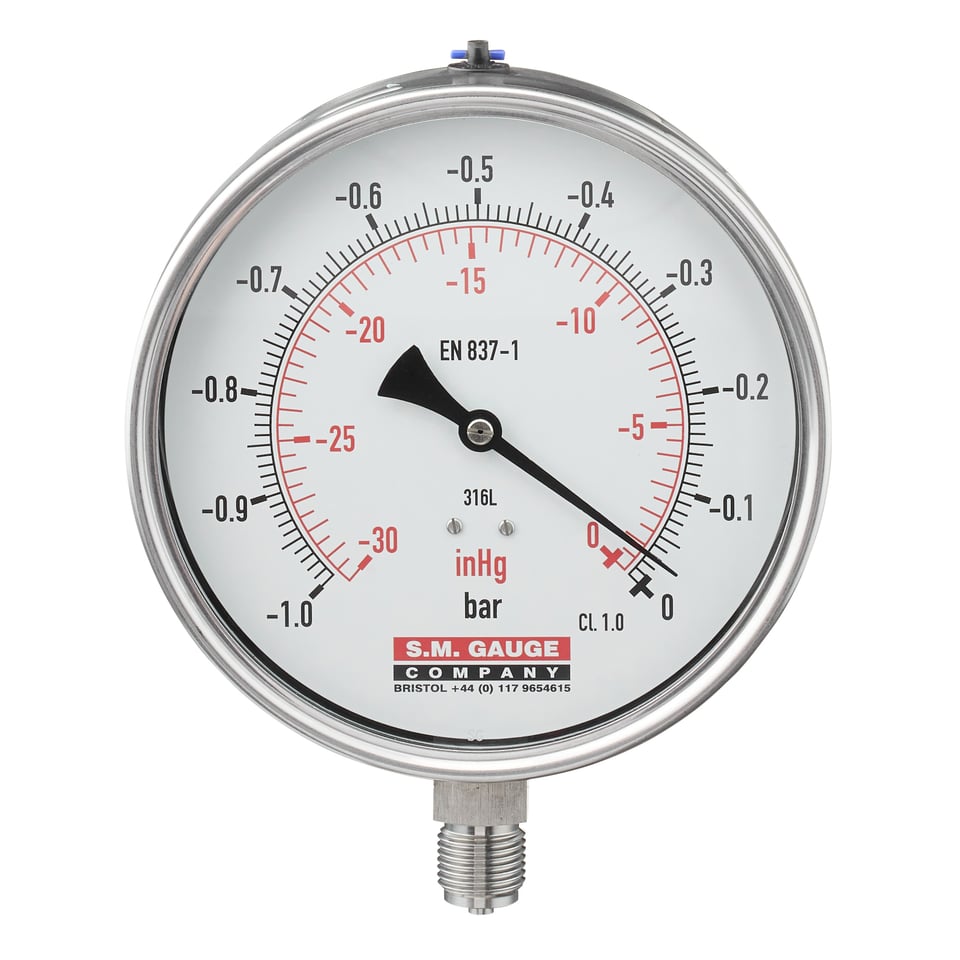

For use on air or inert gases, where negative pressure is present. These can measure from 0 to full vacuum (-1bar).
Specification
- Diameter: 40, 50, 63, 100, 160, 200 & 250mm
- Ranges: from 0 to -1 bar (-30″Hg) vacuum
- Accuracy: ±1.0%, ±1.6% & ±2.5% FSD (subject to diameter)
- Orientation: Bottom or rear
- Thread sizes: 1/8″, 1/4″, 3/8″ & 1/2″ BSP, BSPT or NPT
- Mounting: Direct
- Case Filling: Dry or glycerine
- Case Material: 304 stainless steel
- Connection: 316L stainless steel
- Window: Safety glass
- Process temperature: 200°C Max (100°C with case filling)
- Weather protection: IP 65
Options
- Custom ranges/dials
- Customer logo
- Increased accuracy ± 0.6% FSD
- Alternative mounting options: Panel mount with clamp, surface mount, 3 hole front flange
- Indicating or max drag pointer
- Bespoke threads
- Rubber shroud
- Electrical contact (dry or silicone filled only)
- 316 stainless steel case
- ATEX Ex II 2 GD c TX
- 3.1 material certificates
- Additional certification
Calibration Notes
- Traceable to National Standards
- UKAS
